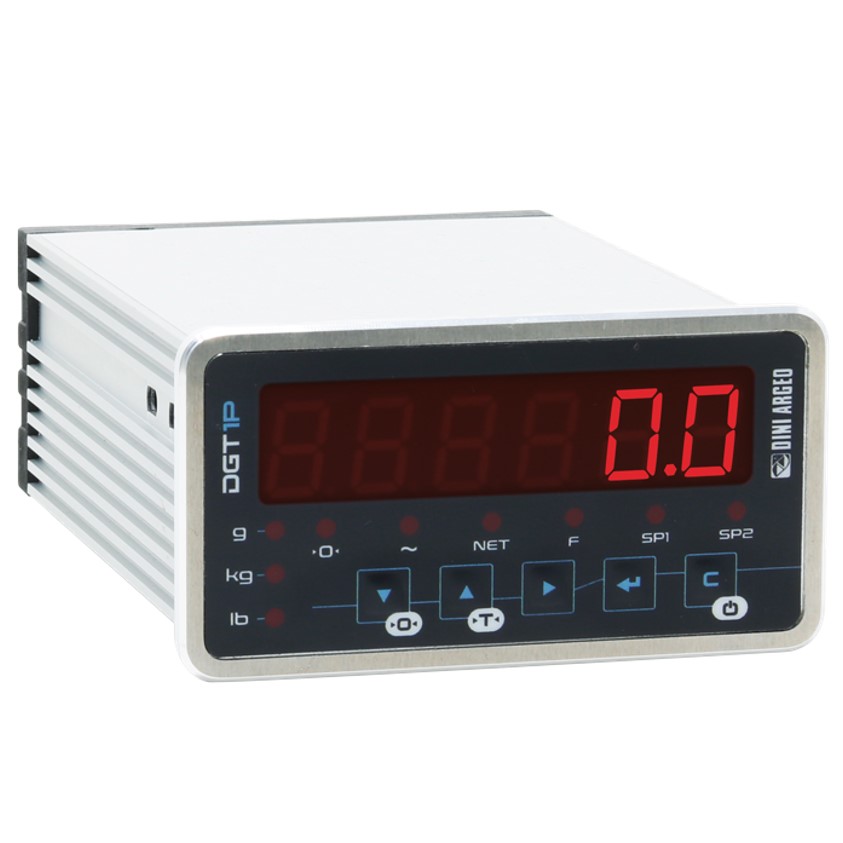

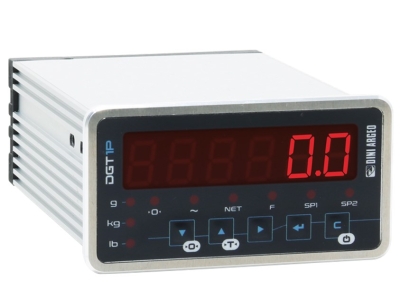

意大利diniargeo狄納喬DGT1P稱重儀表 稱重變送器

意大利diniargeo狄納喬DGT1P稱重儀表 稱重變送器

帶鋁制外殼的面板重量變送器/指示器。作為工業稱重和配料系統中的微控制器的理想選擇，它可以更輕松、更安全地將稱重集成到任何自動化系統中。多達 2 個可編程數字輸入和 6 個輸出。

訂購熱線

0551-65222217
帶鋁制外殼的面板重量變送器/稱重儀表。作為工業稱重和配料系統中的微控制器的理想選擇，它可以更輕松、更安全地將稱重集成到任何自動化系統中。多達 2 個可編程數字輸入和 6 個輸出。
Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.
Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

TECHNICAL FEATURES

  • Power supply: 12-24 Vdc

  • Converter: A/D 24 bit with 1 channel

  • Max number of scales: 1

  • Load cells connection: 4 or 6 wires (with sense)

  • Conversion rate: 400 Hz

  • Selectable sampling rate: up to 400 conv./sec

  • Displaying: up to 800.000d

  • Signal sensitivity: 0,01 μV/d (0,03 μV/e)

  • Resolution: 3.000.000 points

  • Linearization: up to 8 points

  • Connectable load cells: up to 16x350 Ω cells

  • Serial ports: 1 RS485 port

  • Analog output: 16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.

  • Digital outputs: n. 2 OUT (optional up to 6), configurable optoisolated photomosfet

  • Digital inputs: n. 2 IN, configurable optoisolated

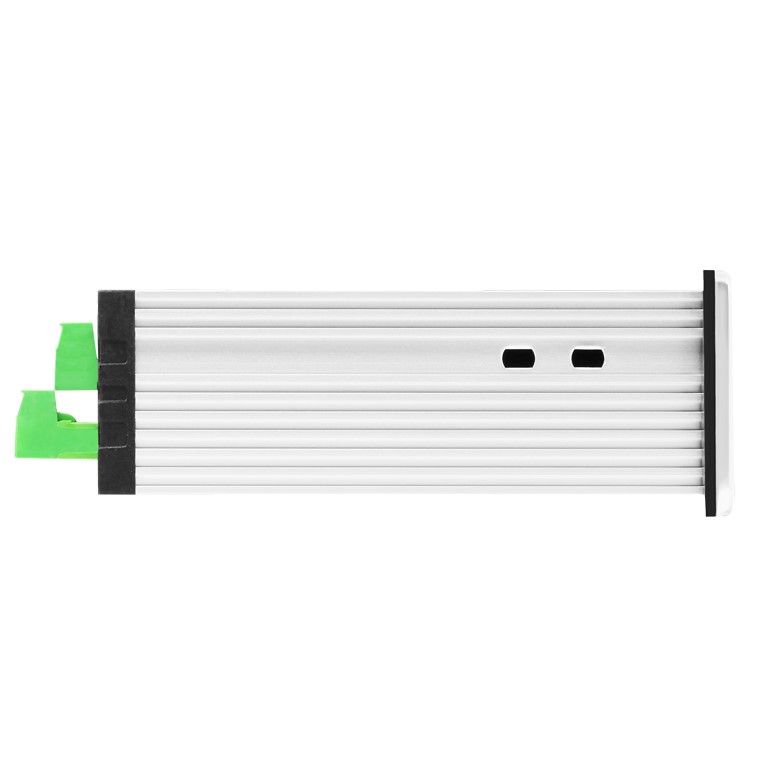

  • Case: aluminium. Dimensions:100 x 53 x 136 mm(lxhxw). Panel cutout: 92 x 44 mm(lxh).

  • Calibration:
    - Theoretical (mVV)
    - With sample weights

  • Keyboard functions: zeroing, tare, function mode, print, manual data sending, On/Stand-by

  • Program functions:
    - Setpoint
    - High resolution
    - Peak
    - Alibi Memory
    - Unit of measure conversion

  • Keyboard: mechanical with 5 digits, waterproof

  • Display: 14,2mm red LED


Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.
Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

TECHNICAL FEATURES

  • Power supply: 12-24 Vdc

  • Converter: A/D 24 bit with 1 channel

  • Max number of scales: 1

  • Load cells connection: 4 or 6 wires (with sense)

  • Conversion rate: 400 Hz

  • Selectable sampling rate: up to 400 conv./sec

  • Displaying: up to 800.000d

  • Signal sensitivity: 0,01 μV/d (0,03 μV/e)

  • Resolution: 3.000.000 points

  • Linearization: up to 8 points

  • Connectable load cells: up to 16x350 Ω cells

  • Serial ports: 1 RS485 port

  • Analog output: 16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.

  • Digital outputs: n. 2 OUT (optional up to 6), configurable optoisolated photomosfet

  • Digital inputs: n. 2 IN, configurable optoisolated

  • Case: aluminium. Dimensions:100 x 53 x 136 mm(lxhxw). Panel cutout: 92 x 44 mm(lxh).

  • Calibration:
    - Theoretical (mVV)
    - With sample weights

  • Keyboard functions: zeroing, tare, function mode, print, manual data sending, On/Stand-by

  • Program functions:
    - Setpoint
    - High resolution
    - Peak
    - Alibi Memory
    - Unit of measure conversion

  • Keyboard: mechanical with 5 digits, waterproof

  • Display: 14,2mm red LED

DOWNLOAD
MAIN CERTIFICATIONS

  • CE-M EN 45501

  • OIML R76

  • OIML R61 - MID

  • OIML R51


Available versions

CodeDescription
DGT1PPanel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.
DGT1PANPanel weight transmitter with aluminum case. 2 IN, 2 OUT and analogue output. 5-key keypad, LED display.
